Home / Products / Micro-E Insulation / Micro-E Insulation PERF

Micro-E Insulation

Micro-E Insulation provides a thermal break while our pure aluminium facings reflect up to 97% of radiant heat. Micro-E can used in all aspects of construction and regularly utilized in offsite construction and modular building but is particularly well utilized, due to its flexibility, in tents, yurts, sleeping bags, curtains, roman blinds and much more. Micro-E can easily be stapled, stitched, nailed, or glued.

Request A Sample

Documentation

Low-E Insulation Warranty Information Sheet

Low-E Insulation COSHH Information Sheet

Micro-E Insulation PERF – Data Sheet

Micro-E Insulation PERF

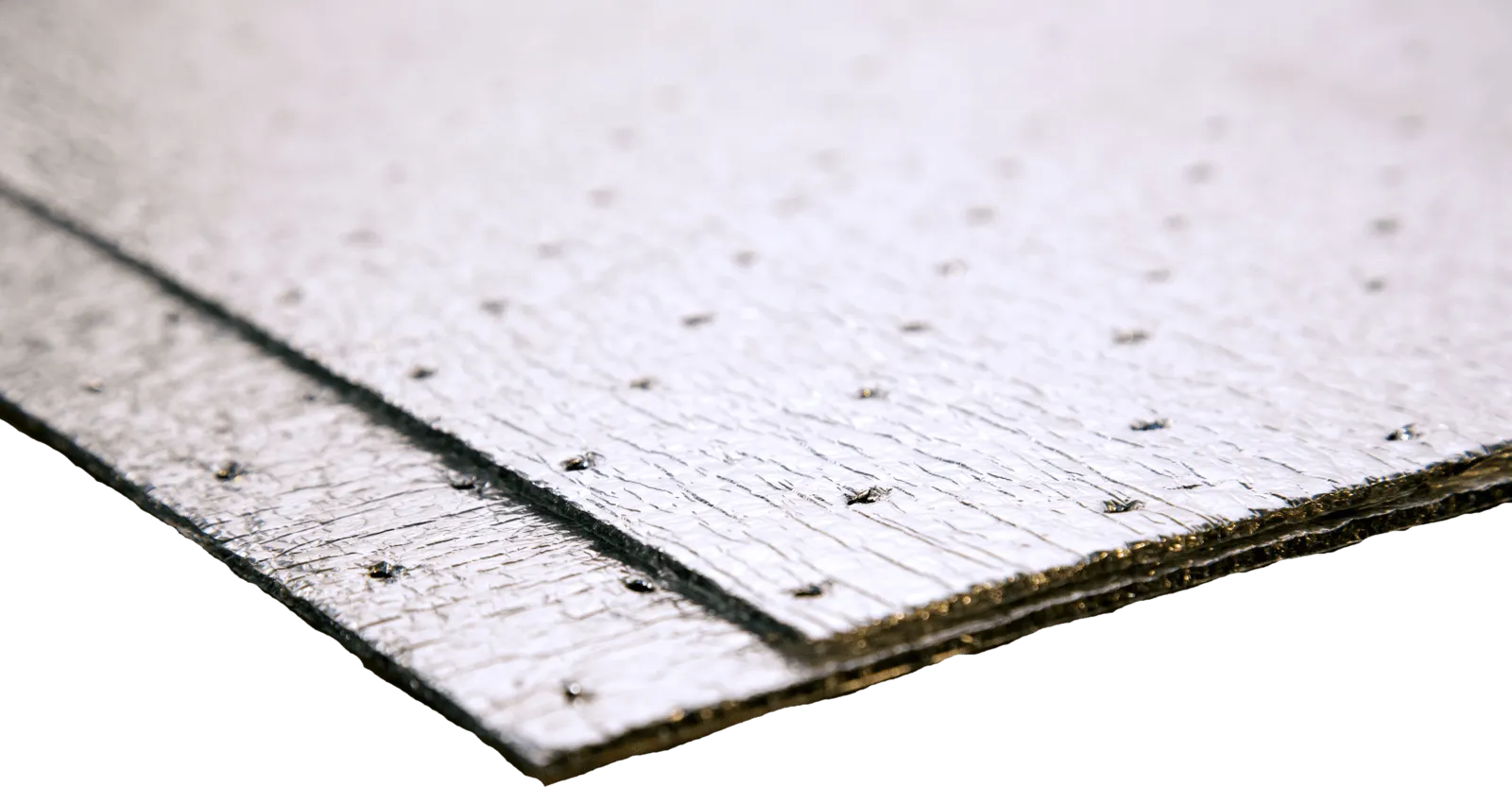

Micro-E PERF is perforated using our patented process. The perforations are designed to allow moisture to pass through the product without compromising the thermal properties of the material while also limiting air movement. Micro-E PERF is recommended where breathability is part of the design requirements.

L4PMPA-30

Composition

Pure Aluminium / Recycled Foam / Pure Aluminium

Thickness

3mm

Width

1.25m

Length

24m

Coverage

30m²

Weight

110g/m²

Technical Details

Thermal Properties

Emissivity

0.05 (EN 16012)

Core Conductivity

0.0366 W/(mK)

Floor R-Value

1.85 (m²K/W)

Wall R-Value

1.58 (m²K/W)

Pitched Roof R-Value

1.41 (m²K/W)

Flat Roof R-Value

1.13 (m²K/W)

Fire/MVT/Air Permability

Fire Performance

Class 1 (BS 476)

MVTR

0.11 (MN s/g)

Air Permability

–

Additional Testing

Fungi/Mould Resistance

Pass

Sound Transmission (STC)

–

Delamination

Pass

Corrosivity

Pass

Nail Tear

–

Tensile Strength

–

GWP

ZERO

Certification/Testing

Intertek

Specialist Testing

Fire Test – Tent Fabric (ASTM 6413)

Pass

Fire Test – Tent Fabric (BS EN 5915)

Pass

Full Scale Room Burn

–

Emissivity (ASTM 1371)

0.03

NEED A U-VALUE CALCULATION OR
CONDENSATION RISK ANALYSIS?

Our team are fully trained and here to help.

Request A Calculation

Browse Some Applications

Low-E Reflective Insulation can be used in virtually any application where environmental control is required.

contact us today

Solid Floor (Over Screed)

Older properties with solid floors can be difficult to upgrade. Low-E Insulation offers a very cost-effective alternative.

Loft Insulation

Looking to upgrade your loft insulation, but don’t want to lose space in the attic?

Pitched Roofs

Quick, clean and very easy to install you can use Low-E Insulation EZY Seal (vapour barrier) on to the internal side, or Low-E Insulation PERF (breathable) on the exterior side of any type of pitched roof.

Flat Roofs

Installing Low-E Insulation below the roof can reduce the amount of insulation required between the joists, where space may be limited, and can stops draughts coming into the building itself.

Timber Frame

Low-E Insulation will increase the performance of your timber frame in less space than anything else on the market.

Cavity Walls

Installing Low-E Insulation will increase the thermal performance of your cavity wall without occupying lots of precious internal floor space.
