Low-E Insulation TAB

Low-E Insulation is our original reflective insulation product. Only 5.5mm thick Low-E® Insulation acts not only as a superior air infiltration barrier, reducing draughts and uncontrolled air movement, but it also increases thermal performance by blocking up to 97% of radiant heat.

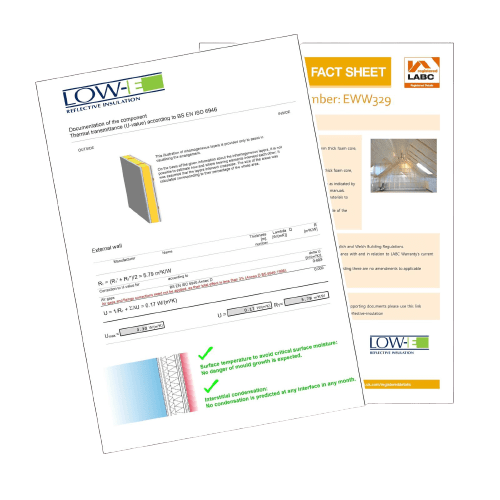

Documentation

Low-E Insulation Warranty Information Sheet

Low-E Insulation COSHH Information Sheet

Low-E Insulation TAB - Data Sheet

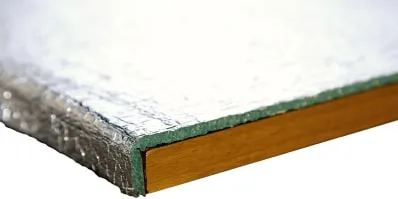

Low-E Insulation TAB

Low-E Insulation TAB is pre-cut to specific widths (400mm or 600mm) for your convenience to neatly fit between rafters, studs, and joists. TAB is ideal for use in barn conversions, crawl spaces and basements where overlaying insulation is not possible.

L4EFEC-15 [24] - Technical Details
Composition
Pure Aluminium / Recycled Foam / Pure Aluminium
Thickness
5.5mm
Width
1.25m
Length
4m
Coverage
5m²
Weight
150g/m²
L4EFEC-10 [16] - Technical Details
Composition
Pure Aluminium/Recycled Foam/Pure Aluminium
Thickness
5.5mm
Width
1.25m
Length
4m
Coverage
5m²
Weight
150g/m²
Composition
Pure Aluminium / Recycled Foam / Pure Aluminium
Thickness
5.5mm
Width
1.25m
Length
4m
Coverage
5m²
Weight
150g/m²
Composition
Pure Aluminium/Recycled Foam/Pure Aluminium
Thickness
5.5mm
Width
1.25m
Length
4m
Coverage
5m²
Weight
150g/m²

Technical Details

Thermal Properties
Emissivity
0.05 (EN 16012)
Core Conductivity
0.0366 W/(mK)
Floor R-Value
1.92 (m²K/W)
Wall R-Value
1.65 (m²K/W)
Pitched Roof R-Value
1.41 (m²K/W)
Flat Roof R-Value
1.20 (m²K/W)
Fire/MVT/Air Permability
Fire Performance
Class 1 (BS 476)
MVTR

0.11 (MN s/g)



Air Permability
Additional Testing
Fungi/Mould Resistance
Pass
Sound Transmission (STC)
40 (ASTM E90)
Delamination
Pass
Corrosivity
Pass
Nail Tear
25-29 (N)
Tensile Strength
44.88-59.68 (N)
GWP
ZERO
Certification/Testing
LABC
Specialist Testing
Fire Test – Tent Fabric (ASTM 6413)
Pass
Fire Test – Tent Fabric (BS EN 5915)
Pass
Full Scale Room Burn
Emissivity (ASTM 1371)
0.03
