Camper Van Insulation

Used extensively throughout the side walls, floor, and roof, Low-E camper van insulation is great for sound deadening, it reduces the risk of condensation and has a Class 1 Fire Rating. It can even be used to make insulated window mats. Lightweight, super thin, and extremely efficient Low-E insulation will not take up valuable space in your campervan and can reduce heat transfer in a vehicle by over 90%, keeping you warmer in winter and cooler in summer.

Reflects 97% of Heat

Deadens Sound

Doesn't Absorb Moisture

Mould, Fungi and Rot Resistant

Quick and Easy to Install

Insulating your campervan is important for several reasons beginning with the comfort of the occupants. It is not just about stuffing insulation into the van. The type of insulation is important but where and how it is installed are equally important. You want to make sure the van is warm in the winter and cool in the summer. You also want to reduce the risk of condensation and reduce sound transmission and road noise.

“I’ve used low e for the past 15 months. I’ve found it to work fantastic is all conditions. I’ve probably got 20 vans with it fitted and I’ve had no complaints from any of my customers about being cold. Some of the vans are used for skiing holidays in places that are -20C and more.”

– J Cochran, Genesis, UK

For more information and to see our most frequently asked questions

on insulation a campervan please visit our campervan insulation blog…

How to install Campervan Insulation

There are a few different methods for insulating Low-E Insulation in a camper van.  We can’t cover them all in here but the most important thing to remember is to try and maintain an airspace beside the foil surface. The airspace can be between 6mm-20mm. The bigger it is the more efficient it will be.

To read more about using Low-E Insulation in a campervan, to see our install video and read more reviews, pop over to our blog page here… >

Applying an additional Layers – Its only worth using an extra layer of Low-E Insulation if you also have an airspace beside the foil surface. There is not great benefit in doubling up the insulation. To learn more about how airspaces work click here >

Carefully follow each of the steps below and you will soon have a well-insulated camper van ready to kit out to your own custom specifications. Take care when using sharp blades and always refer to manufactures guidelines.

*This guide focuses on the install of insulation only. Be sure to consider any other steps in your camper van project such as electrical installations and plumbing, before you begin.

Step 1

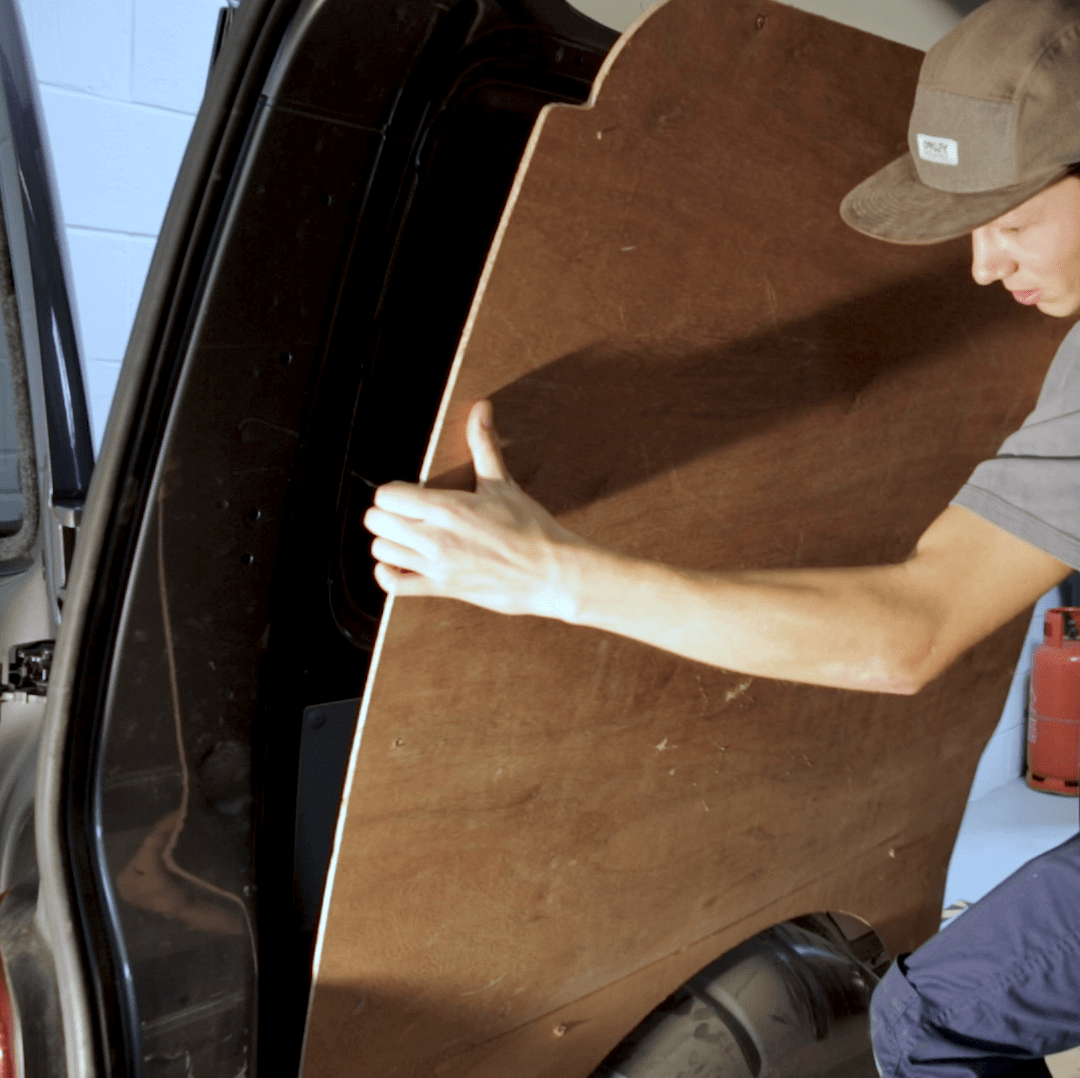

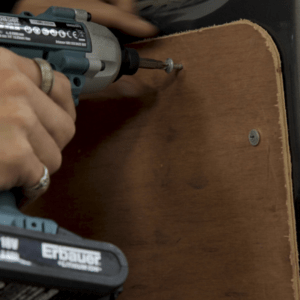

Ripping Out

In order to insulate your van, you will need to strip the interior down to the bare metal. Start by removing any existing fixings from your van’s interior. Unscrew and remove any internal panels taking care not to damage the pieces if you plan on re-using them later. Existing panels may be useful as templates for your new panels. If they’re secured with poppers you can prise them out although some may break. Be sure to remove any other material such as carpet or old insulation from behind the panels. Use protective equipment if you suspect any mould or airborne fibers.

Finally, sweep the vans interior and use a damp cloth to remove any dust from all surfaces. Now that you have cleared out your van, make sure the area you are going to insulated is clean and dry and you can begin re-fitting to your own specifications.

Step 2

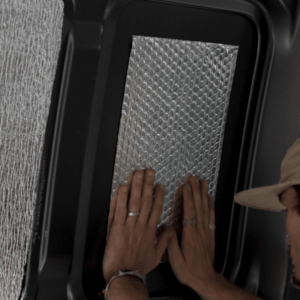

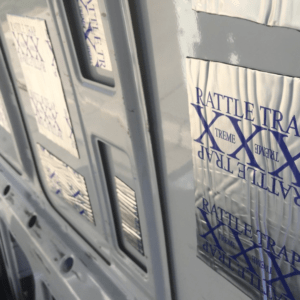

Sound Proofing

If you are going to do it, now is the time to installing any sound proofing. Low-E Insulation has very good sound deadening qualities but it is not a sound proofing material. Installing a product such as *Rattle Trap, can help reduce road and vibration noise.   *This is not a sponsored link

Step 3

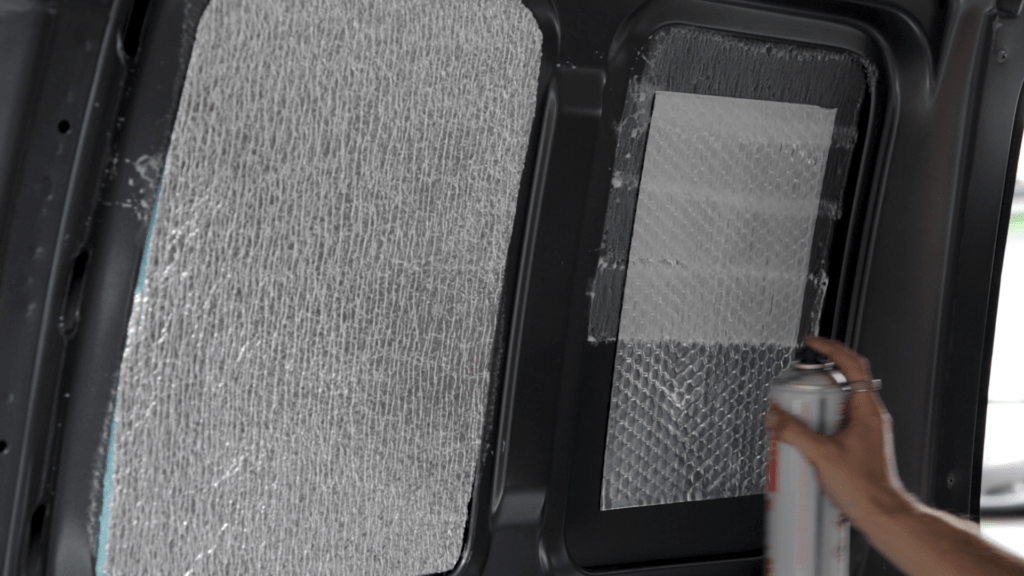

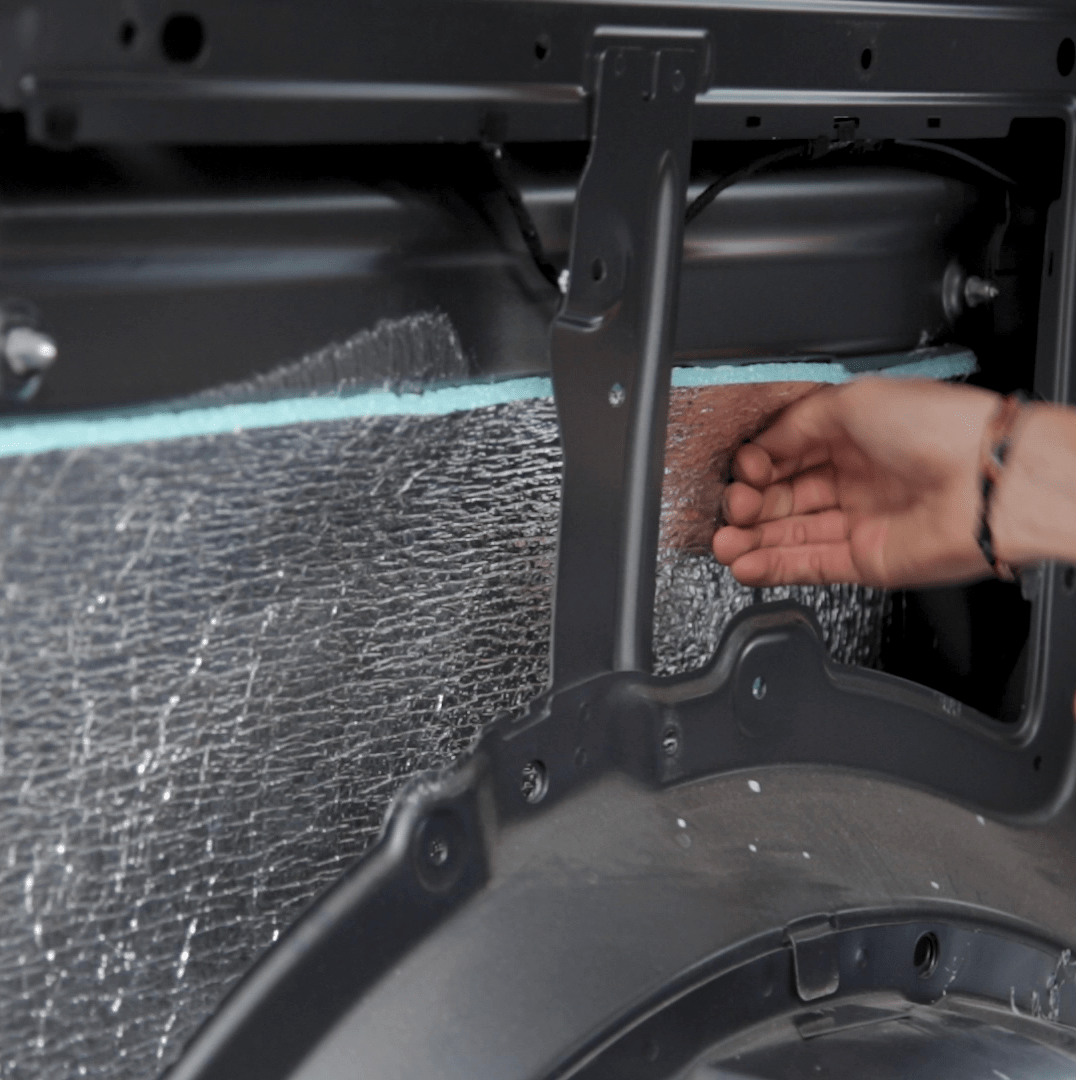

Insulating the recesses

The first part of your van to be insulated will be the recessed areas. Measure the recessed areas of the van and cut a piece of insulation to size from the main roll. Hold the insulation into place to check it for size.



Following the manufacturers guidelines, applying the Spray adhesive to the bodywork evenly (over any soundproofing materials you may have used) and then to the insulation. It doesn’t matter which side of Low-E you apply the adhesive to as it is the same on both sides. Press the insulation into place making sure to achieve good contact with the adhesive surface.


Repeat this process with all internal recesses, over the walls, roof and doors. Remove any excess with a sharp blade as you go.

Step 4

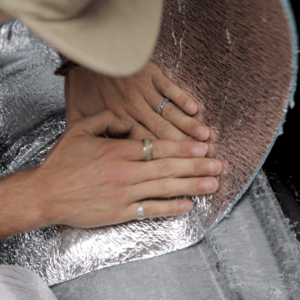

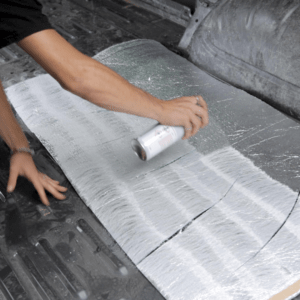

Wheel Arches

Apply the adhesive to both the wheel arch and the back of the insulation to ensure a good fix. There are many ways of cover a wheel arch but here they have cut ‘fan blades’ into the insulation.
Fold the ‘fan’ blades around the arch one at a time and press the insulation down firmly to secure into place. Now that you have insulated both the recesses and the wheel arches it is time to insulate the remaining areas within your van.

Step 5

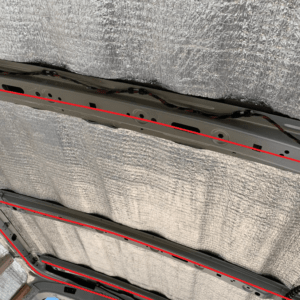

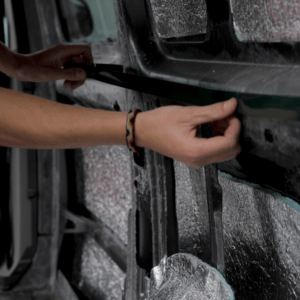

Applying Double Sided Tape

Apply the double-sided tape to all the struts of the vehicle. This will hold the 2nd layer of insulation in place and you will notice where the air gap has been created by the struts in the recesses of the vehicle

Step 6

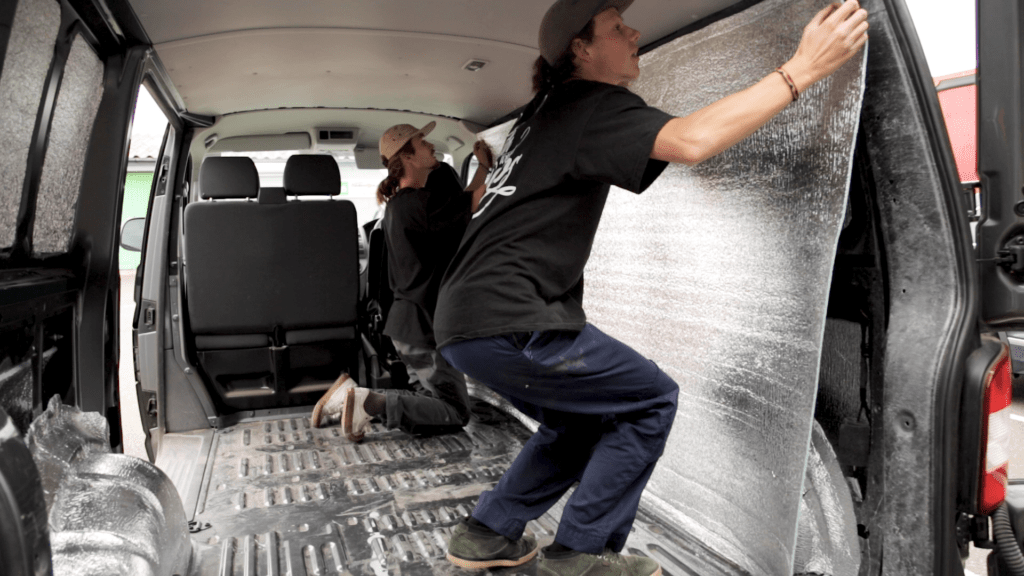

Installing Insulation and VCL

Now cut a piece of Low-E Insulation to size from the main roll. Stretch the piece insulation from the front to the back of the vehicle in one single piece.

Remove the backing from the double-sided tape and secure the piece of insulation in place.

This reduces thermal bridging and cold spots across the struts vehicle. Repeat this process along all sides, the doors and the roof.

You will notice that you have created an airspace between the layer beside the foil surface.

Step 7

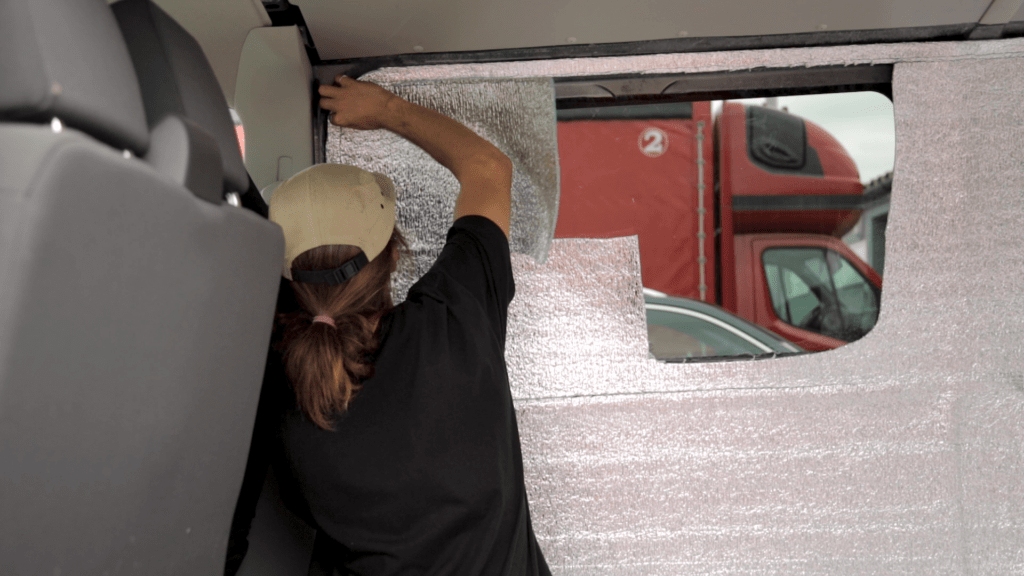

Cutting out for Windows

Carefully cut the insulation around any window openings. Then use the foil tape to seal up and joints and gaps in the insulation to ensure you maintain a Vapour barrier through the camper.

You can also use the foil tape to join pieces of insulation together, mend cuts, tears or holes that you might have made during the install

Once you are happy that your foil insulation is fitted securely and that all joints have been taped together, you are ready to fit your internal lining panels

Step 8

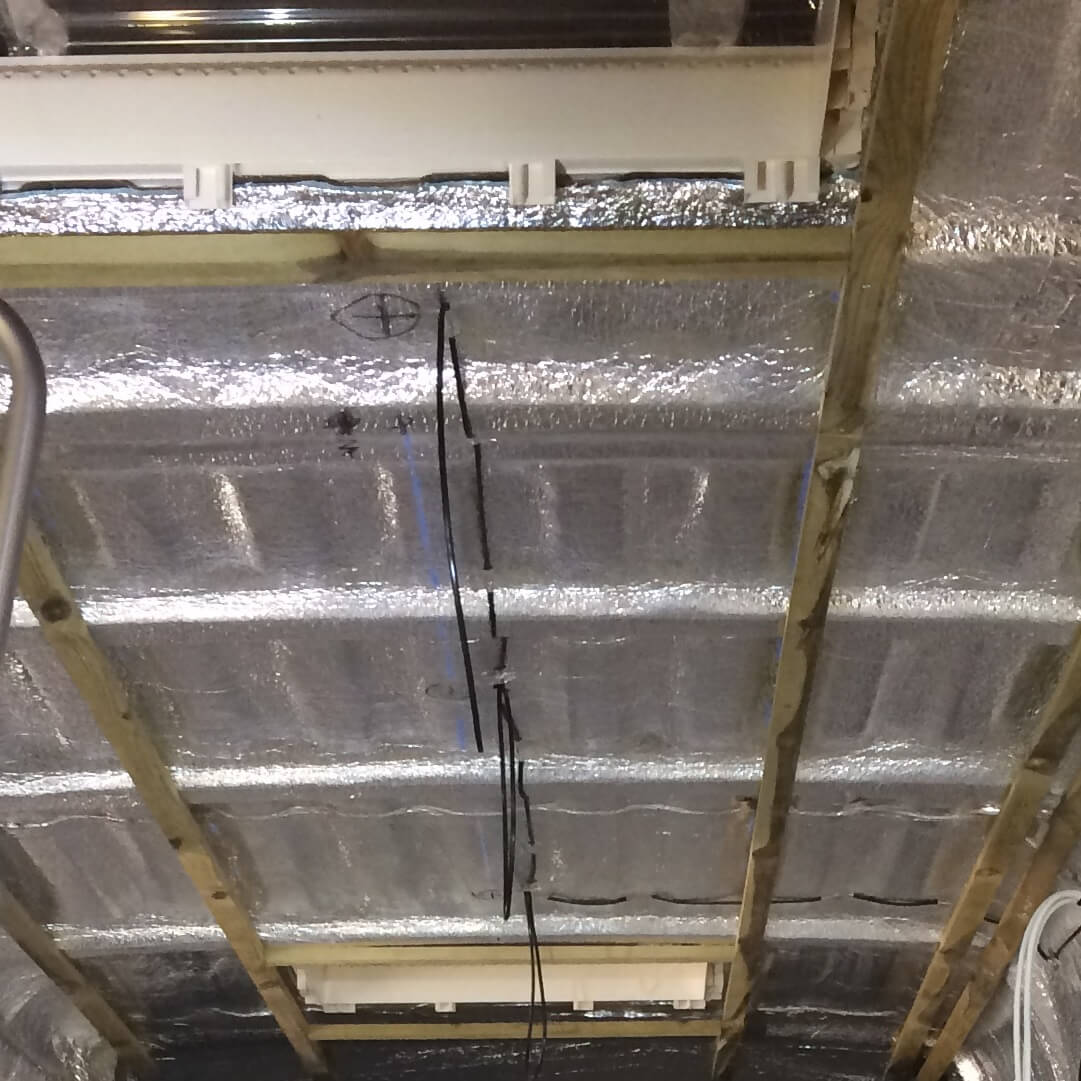

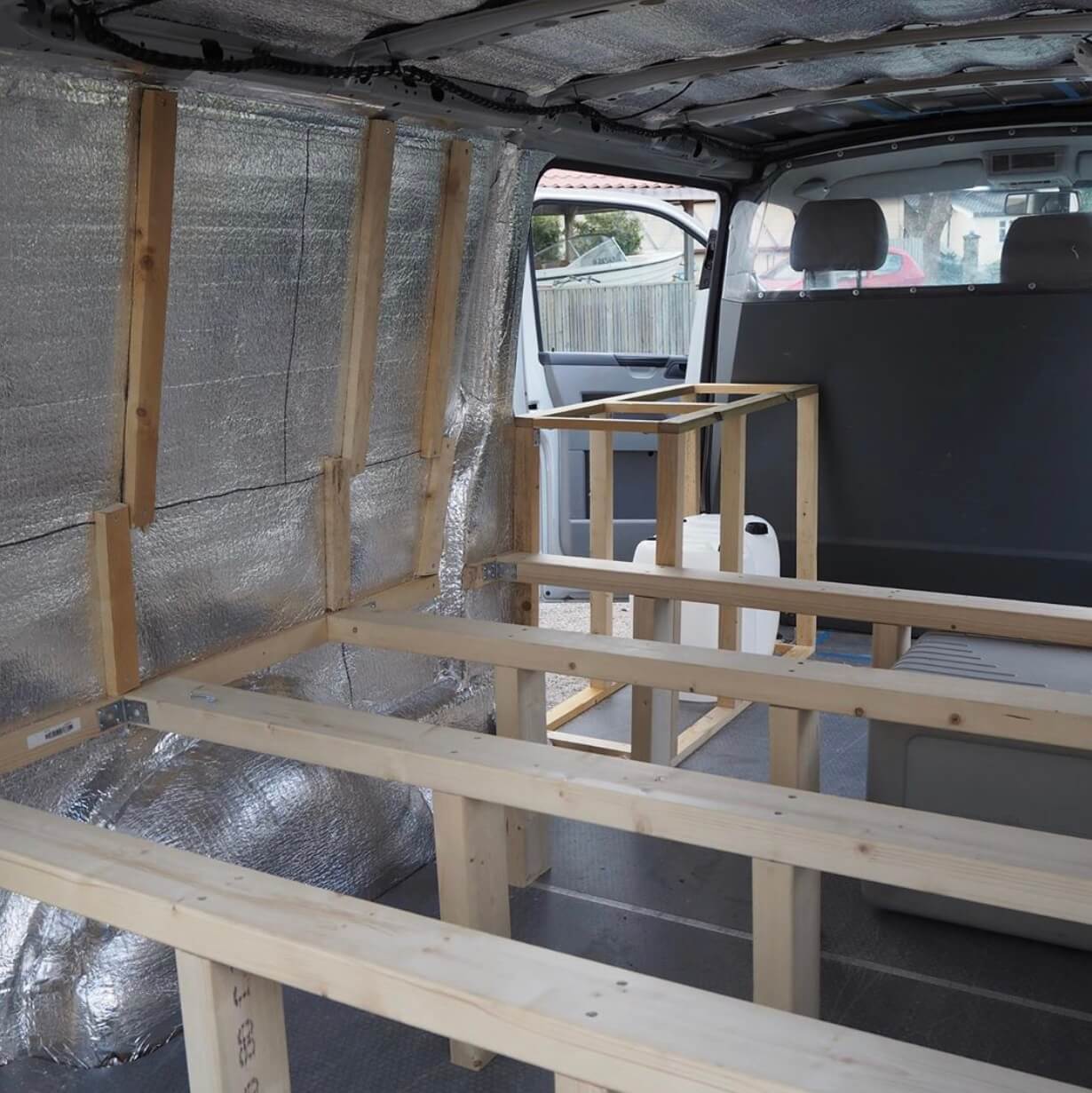

Boosting Performance

You now have the option of creating another airspace between the insulation and the internal panels. This is simple done by fixing a batten or spacer between insulation and the internal panels. Remember the airspace only needs to be small to be effective (6mm-20mm).
This takes a little longer to do but creating another airspace beside the foil surface is by far the most efficient method for installing Low-E Insulation in a camper and could boost the thermal performance by another 40%.

Step 9

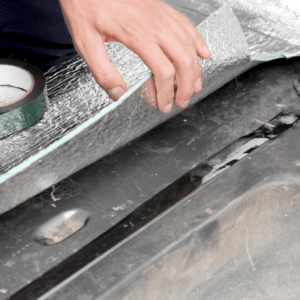

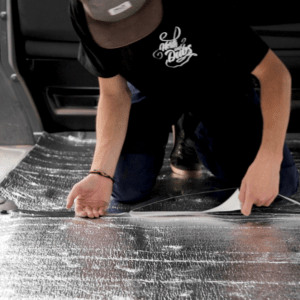

Insulating the Floor

Simply cut a piece of insulation to the size and shape of the floor. You can tape a number of pieces of insulation together if needed.
Put double sided tape around the edges of the floor, remove the backing and secure the insulation in place.

*OPTION – Use a double layer of Low-E Insulation or use our Ultra-E Insulation (11mm thick) to slightly increase thermal performance and for better sound deadening.

Step 10

Finishing Off

It is now time for you to finish the rest of your project happy in the knowledge that you have created a great insulation system, that keep you cool in the summer, make your van easy to heat and keep you warm in winter, deaden sound, and won’t rot corrode, or most importantly, absorb moisture.

Happy Camping!
